Effluent Filters
SPECIFICATIONS:- Plastic Effluent Filter 800 GPD (PL-68) (Special Order)...part number 9520025
- Plastic Effluent Filter & Tee 800 GPD (PL-68)...part number 9520026
- PL-68 Tee Baffle (Special Order)...part number 9520027
Features
- Fits in any tee on the market
- 68 linear feet of 1/16” filtration slots
- Accepts 1” PVC handle
- Easy installation
- Locks in any 360° position when used with PL-68 Tee
- Gaskets prevents bypass
- PL-68 Housing can be used as an inlet or outlet tee
________________________________________________________
SPECIFICATIONS:- Plastic Effluent Filter 1500 GPD (PL-122)...part number 9520028
- Optional Alarm Switch...part number 9520036
Features
- Offers over 122 linear feet of 1/16” filter slots
- Flow control ball shuts off the flow of effluent when the filter isremoved for cleaning
- Gas deflector ball deflects solids
- Installs easily in new tanks or retrofits in existing systems
- Comes complete with its own housing; no gluing of tees or pipe
- Rated for 1,500 gpd
- Modular design allows for increased filtration
- Accepts 3’’ and 4’’ SCHD 40 and SDR 35 Pipe
NOTE: Please speicfy if the filter will be flange mounted or if a four inch pipe adapter fitting will be required when ordering
________________________________________________________ SPECIFICATIONS:- Plastic Effluent Filter 10,000 GPD 1/16th” slots (PL-525)...part number 9520030
- Optional Alarm Switch...part number 9520036
- Plastic Effluent Filter 10,000 GPD 1/32nd” slots (PL-625)...part number 9520031
- Optional Alarm Switch...part number 9520036
Polylok’s new PL-525 and PL-625 Effluent Filters are rated for up to 10,000 gpd (Gallons Per Day), placing them among of the largest commercial filters in their class. Like the PL-122, the new PL-525 and PL-625 has an automatic shut off ball installed on every filter. When the filter is removed for cleaning, the ball floats up and temporarily shuts off the system so the effluent won’t leave the tank. No other manufacturer on the market can make that claim.
Features
- Rated for 10,000 gpd (Gallons Per Day)
- PL-525 has 525 linear feet of 1/16” filtration
- PL-625 has 625 linear feet of 1/32” filtration slots
- Accepts 4’’ and 6’’ SCHD 40 pipe
- Built in Gas Deflector
- Automatic shut-off ball when filter is removed
- Alarm accessibility
- Accepts PVC extension handle
Under normal conditions, the PL-525 and PL-625 Effluent Filters will operate efficiently for several years before requiring cleaning. It is recommended that the filter be cleaned every time the tank is pumped or at least every three years. If the installed filter contains an optional alarm, the alarm will notify the owner when the filter needs servicing. Servicing should be done by a certified septic tank pumper or installer.
Polylok - Zabel Effluent Filters & Cartridges
SPECIFICATIONS:
- Zabel A1801 - 4X18 Cartridge (fits in standard 4” tee)...part number 9520048
- Zabel A300 (1/32 slots) 12” X 20” Filter...part number 9520049
- Zabel A300 (1/32 slots) 8” X 18” Filter...part number 9520050
- Optional Alarm Switch...part number 9520036
CARTRIDGE FEATURES:
- 1/16” Filtration
- Available with built-in secondary 1/2” filtration, reducing preventing large solids from entering
- Can fit into any 4” sanitary tee baffle
- Accepts SmartFilter® switch for use with filter alarms
- Accepts Optional 4” Handle Extension Kit
12” X 20” FILTER FEATURES:
- Flow Rates between 3,000-6,000 gpd
- Optional SmartFilter® switch and alarm
- Versa-Case with built in reducer/adapter and allows solvent welding to either 4” or 6” SCHD 40 pipe
- 1/32” filtration
8” X 18” FILTER FEATURES:
- Flow Rates between 1,200-2,400 gpd
- Optional SmartFilter® switch and alarm
- 1/32” filtration
Polylok Distribution Box
SPECIFICATIONS:- Plastic Distribution Box - 12”...part number 9520032
- Plastic Distribution Box - 20”...part number 9520033
- D-Box Seals...part number 9520035

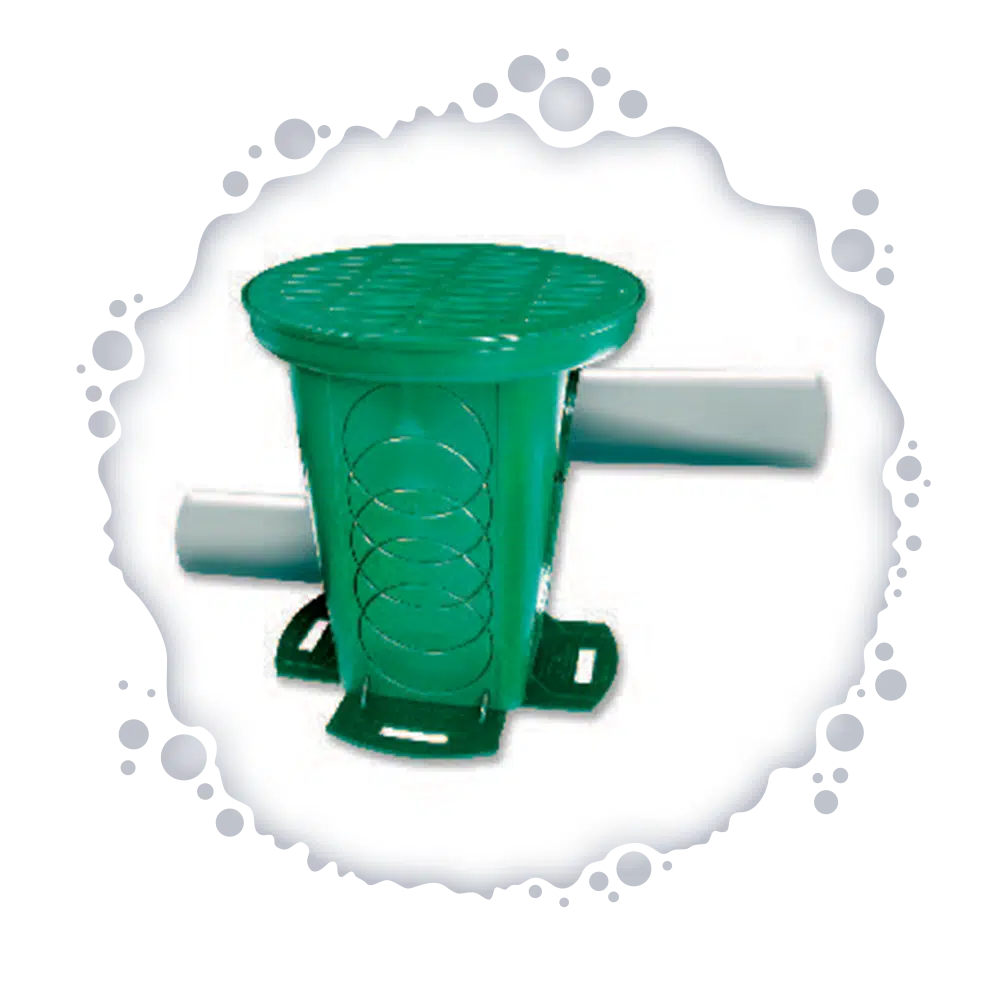

Polylok 12” Distribution Box
The Polylok Distribution Box, the most versatile box on the market, lets you choose the height of your inlets and outlets. It also comes with stabilizing feet to anchor the box.
Features
- Use as rain drain, D-box, or drop box; allows for all configurations
- Use as a rain drain for gutters, driveways, and sub-surface drainage
- Use as a distribution box or drop box for onsite septic systems
- Use with the 12’’ riser to bring cover or grate to grade as needed
- Accepts 2’’, 3’’, 4’’, and corrugated pipe
- Use with solid cover or grate, your choice, no additional cost
- Four stabilizing feet with every box
20’’ Distribution, Drain & Valve Box
The new 20” Drain, Valve & Meter Box is the solution to all of your drainage needs. The most versatile box on the market, it is great for large applications such as golf courses but is also a suitable size for the home. There’s no need to worry about different colored fittings or plugs to inventory because as well as accepting 2”, 3” and 4” pipe, it also accept 6” pipe. Our 20” Drain Box will also accept our 20” Risers so you can easily bring the Drain Box to grade.
Features
- 6” seal and opening available on request
- No different colored fittings or plugs to inventory
- Flat cover or grate included
- 20” D-box can be used as a valve or meter box
- Accepts 20” Polylok Riser to bring to grade
- Optional Baffle available
- Accepts 6” pipe on request
Polylok Seals, Boot Seals, Mandrels and Extend & Loks, Plastic Wheel Chairs
SPECIFICATIONS:- Poly Seal I Low Pressure 9520001
- Poly Seal II High Pressure 9520002
- Mandrels (for Seal I & II) 9520003
- Mandrels (Boot Seals Poly IV High Pressure ) 9520006
- Extend & Lok 3” 9520041
- Extend & Lok 4” 9520039

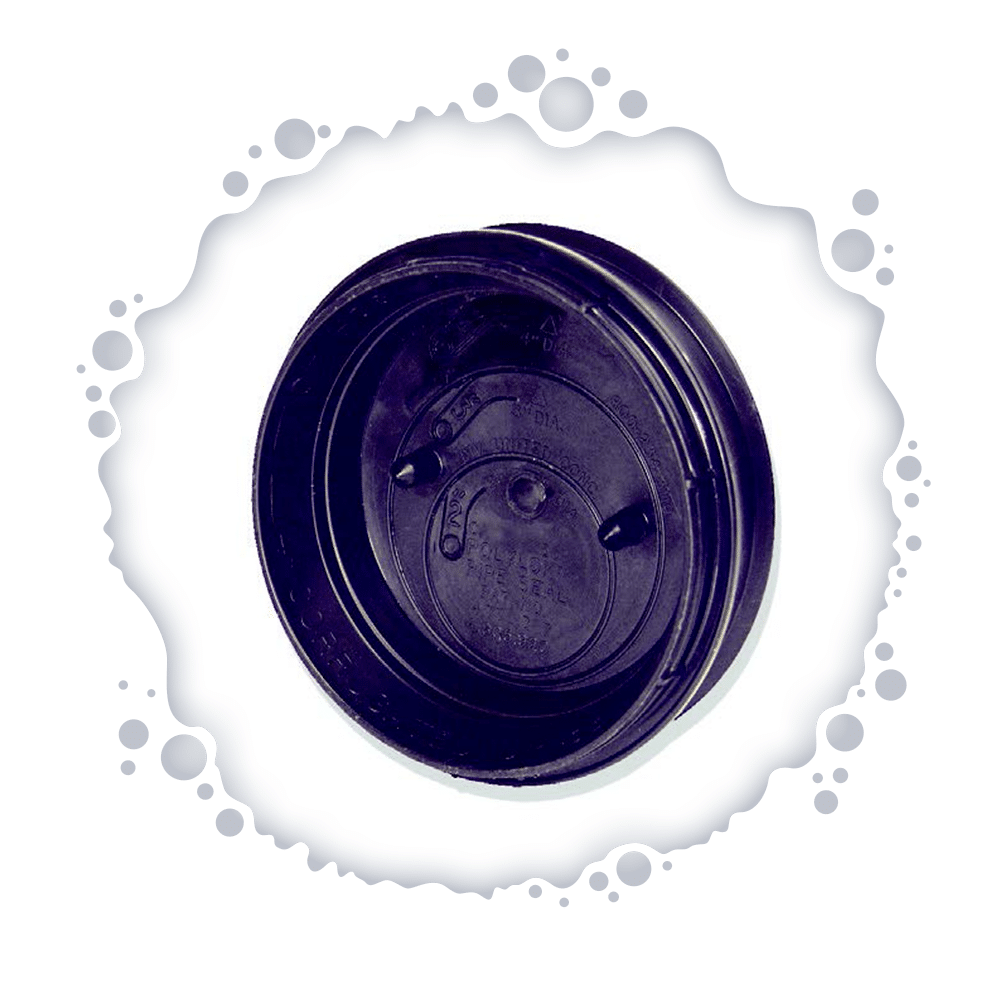

Poly Seal I Low Pressure
Eliminates grouting around the pipe. Quick and easy conversion to any existing form. Low pressure pipe seals can be used in any low pressure application. It’s time to upgrade your product with the Polylok Pipe Seal your customers will be glad you did.
- Accommodates 2’’, 3’’, 4’’, SCHD 40 and corrugated pipes
- Watertight
- No grouting

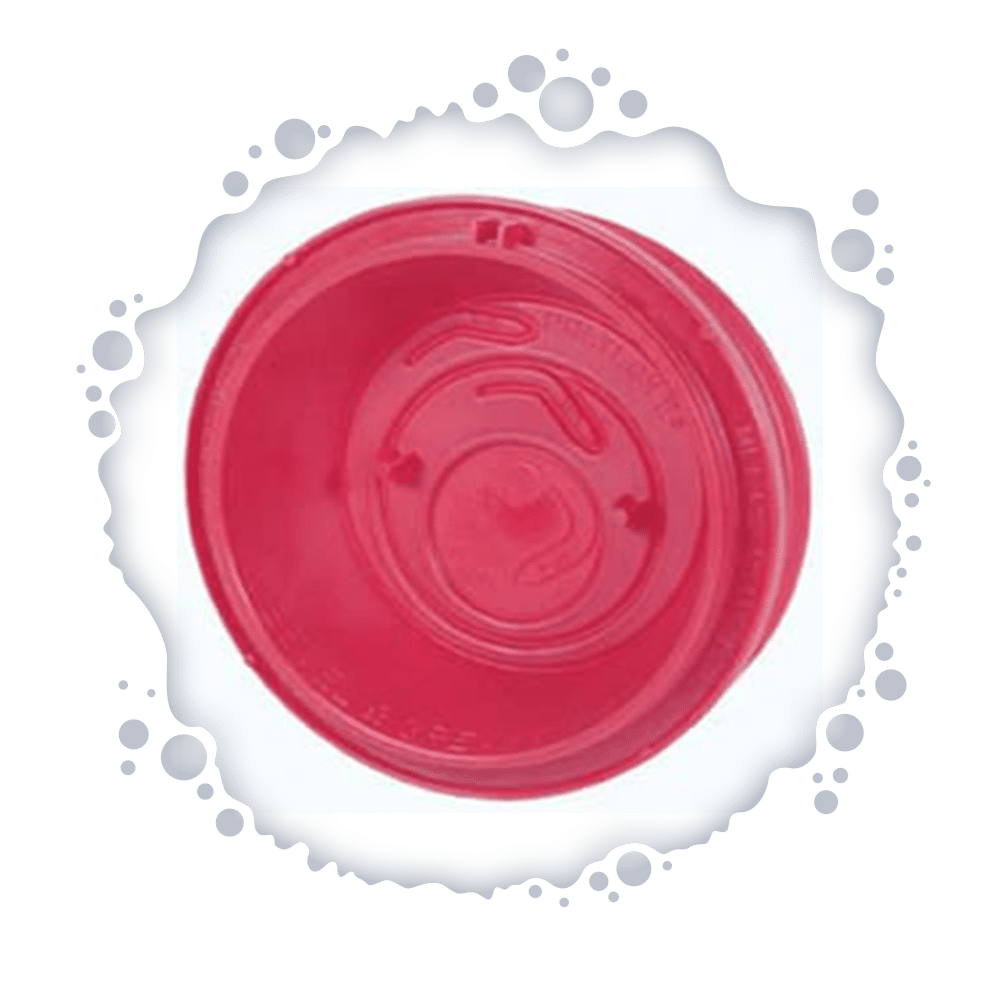

Poly Seal II High Pressure
Use the Poly Seal II for the inlet and outlet pipes on septic tanks, aerobic systems, or anywhere you need water tightness. This new hybrid seal will mount to our existing mandrel that bolts directly to the septic tank form just like the original. The Poly II meets the Vacuum & Hydrostatic pressure requirements of ASTM spec. C-923 for 2”, 3” and 4” SCHD 40. It will allow the water tightness that is now required and the flexibility of choosing what size pipe you want.
- Accepts 2’’, 3’’ and 4’’ SCHD 40 and corrugated pipes
- Prevents infiltration and exfiltration
- No grouting for secure pipe connection
- Fits tank walls 2.5’’- 6”

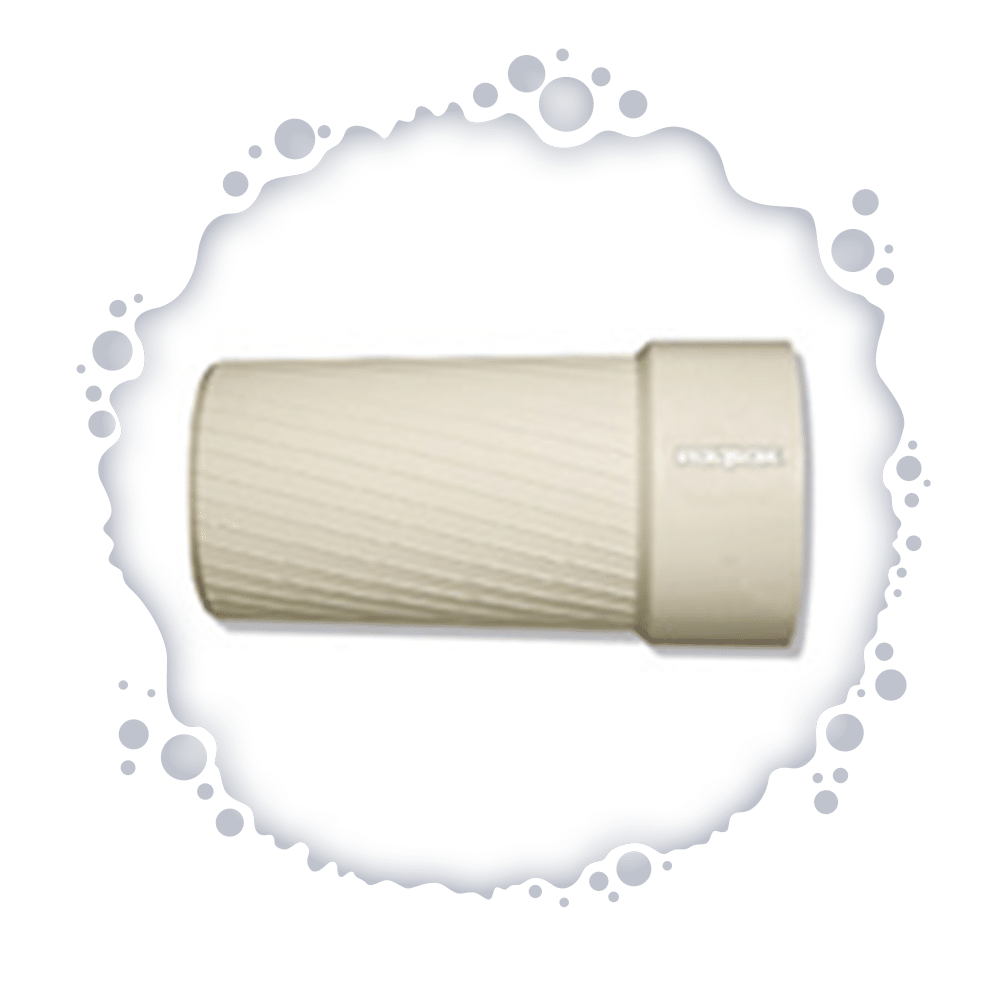

Extend & Lok 3” and 4”
Use the Extend & Lok to extend the inlet or outlet pipe and make filter and/or baffle installation a snap.

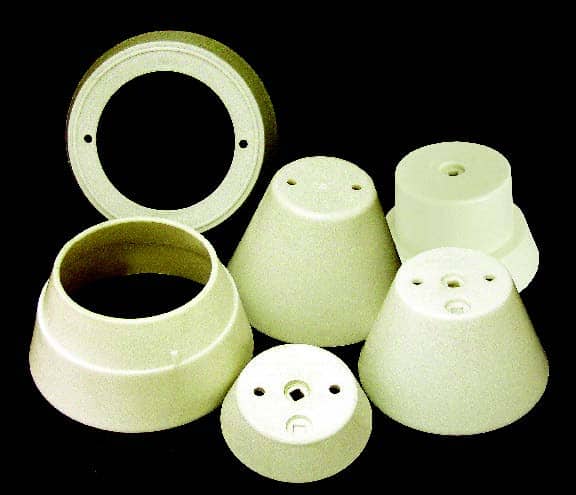

Mandrels
The mandrels are made from a polypropylene composite that allows them to maintain their shape even during the most demanding applications. Each time you cast a Polylok Seal into your tank, you are assured you will get a watertight connection. The mandrels accommodate 2.5”- 6” wall thickness.
Polylok Boot Seals
SPECIFICATIONS:- Boot Seal open end Poly IV High Pressure...part number 9520004
- Boot Seal closed end Poly IV High Pressure...part number 9520005

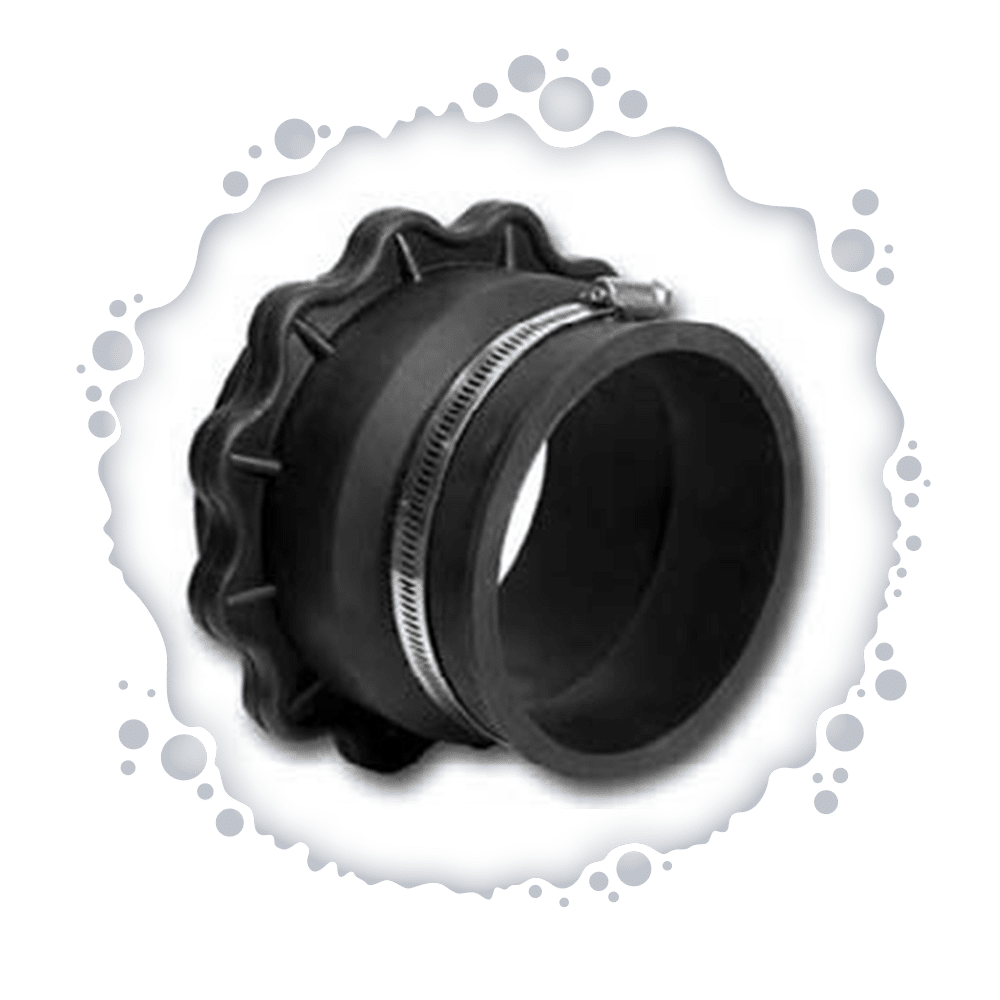

Boot Seals
- Fits onto many existing open end boot tank mandrels
- Allows tanks to be easily vacuum tested
- Accepts 4” Schedule 40 or SDR 35 pipe
- Can be cast in walls 2” - 4” in thickness
- Helps to insure a watertight tank

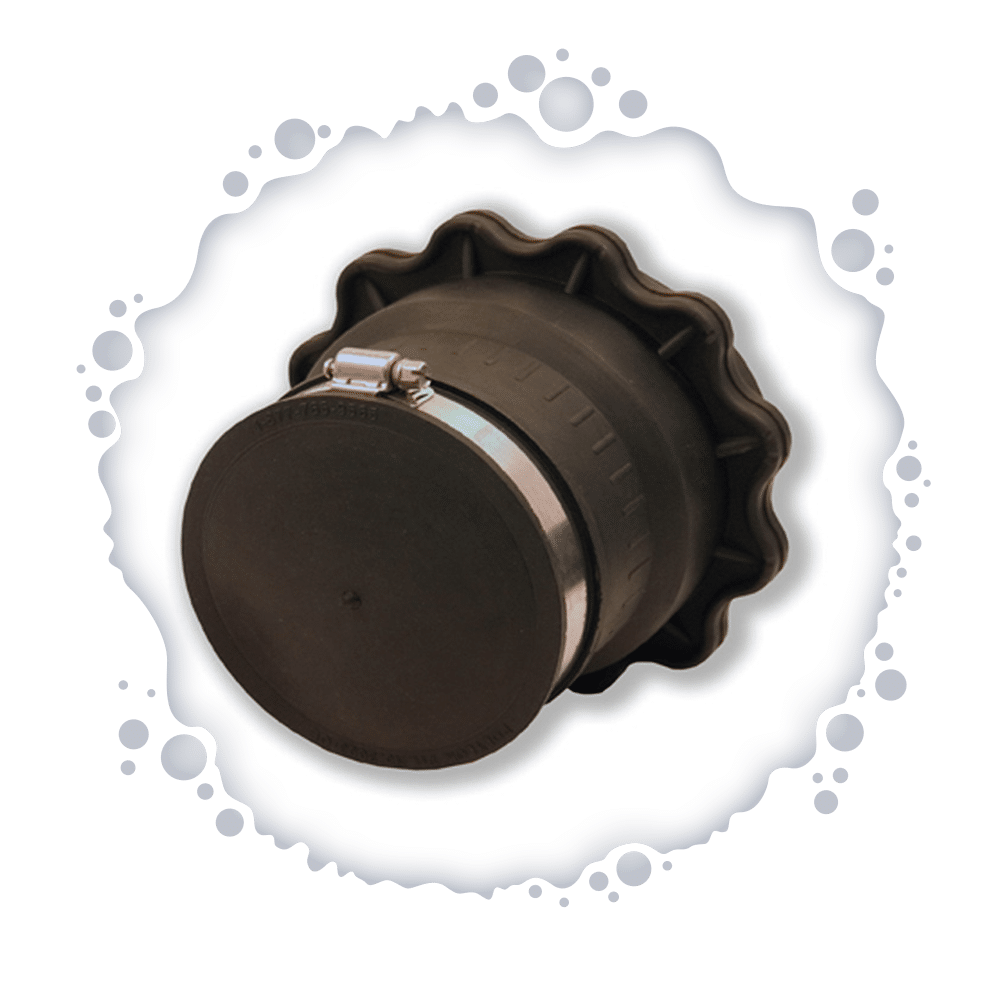

This is the best seal on the market today for vacuum testing and water testing tanks. It is designed with a closed end, so it is no longer necessary to plug seal holes before testing.
- Fits onto many existing open-end boot tank mandrels
- Allows tanks to be easily vacuum and water tested
- Accepts 4” SCHD 40 or SDR 35 pipe
- Can be cast in walls 2.5” - 4” in thickness
Polylok Plastic Wheel Chairs
Polylok chairs handle any load. Be confident knowing that your rebar will stay where you place it. The strongest 7/8’’, 1’’, 1½”, 2’’, and 3’’ cover chairs for all concrete work including: precast, utility vaults, slabs, barriers, foundation work, and bridges. Use one Polylok ratchet style chairs instead of three of any other brand. Works with #3, 4, 5, or 6 rebar.
SPECIFICATIONS:- Plastic Wheel Chairs 7/8 inch...part number 9520007
- Plastic Wheel Chair 1 inch...part number 9520008
- Plastic Wheel Chair 1 inch HD...part number 9520009
- Plastic Wheel Chair 1.5 inch...part number 9520010
- Plastic Wheel Chair 2 inch...part number 9520011
- Plastic Wheel Chair 3 inch...part number 9520012
