Model REP5 Submersible Effluent Pump
Application
- Mound systems, effluent dosing, low pressure pipe, heavy duty sump or dewatering systems

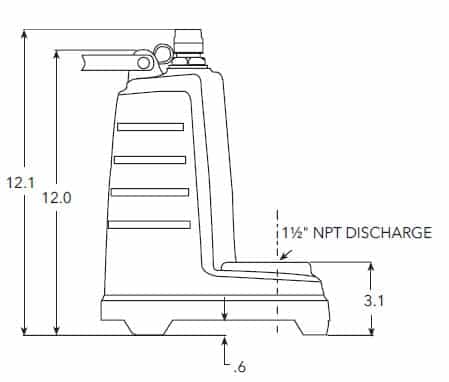

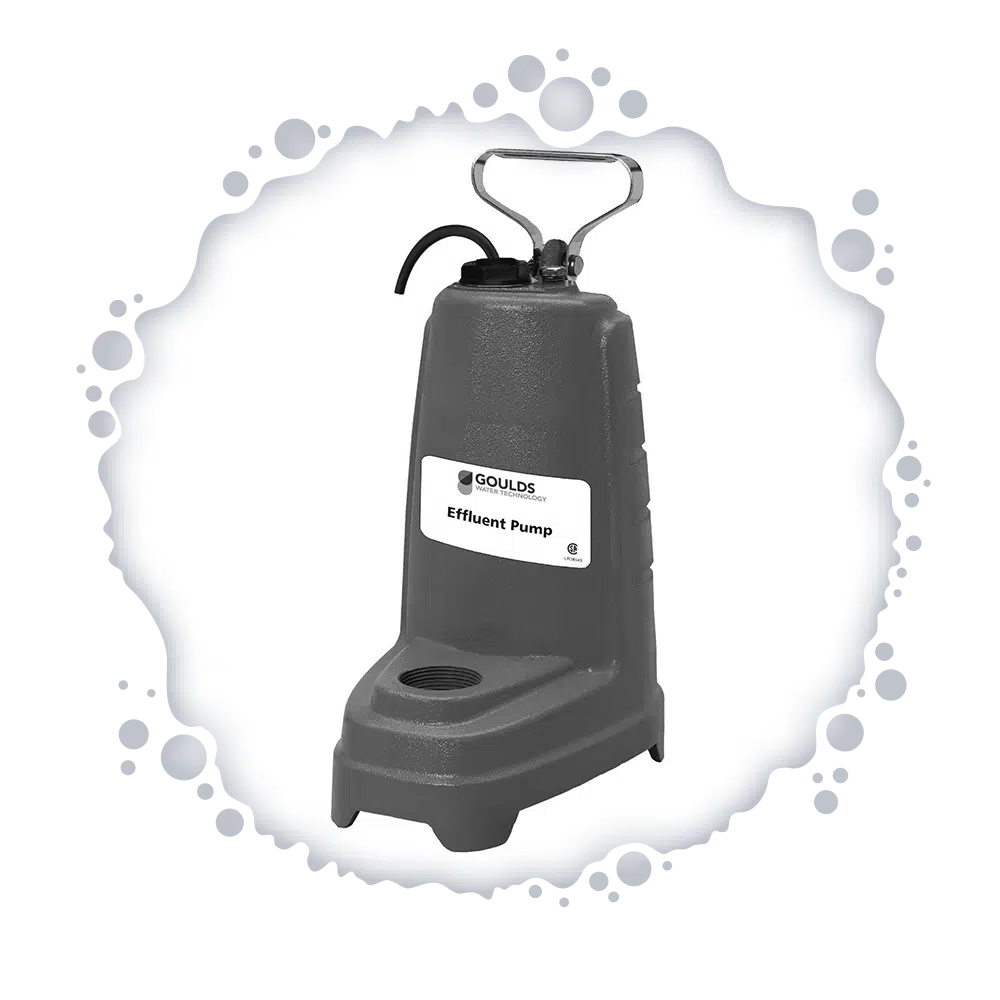

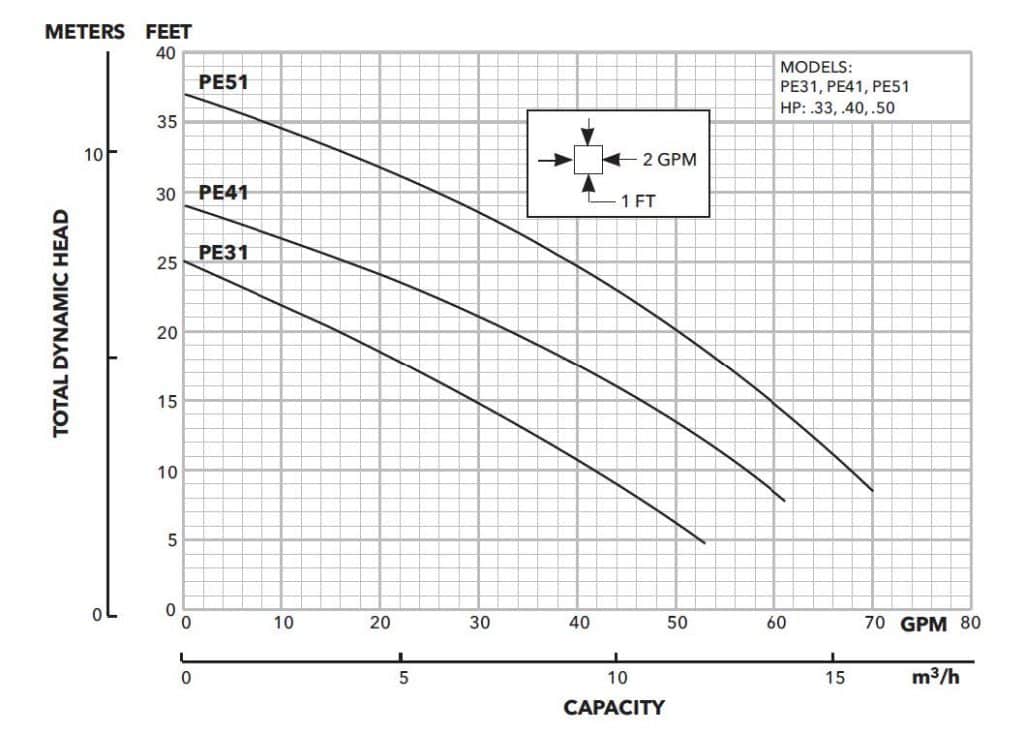

PE51 Pump
- Max. Capacity: 70 GPM
- Max. Head: 37’ TDH
- 1/2 HP, 115 and 230 V
- Economy Submersible Effluent Pump -1/2 HP...part number 953001
Materials of Construction
- Cast iron, thermoplastic and stainless steel
Features/Benefits
- Continuous duty, oil-filled, single phase motors
- Built-in venting - no need to drill vent hole in pipe
- Handles 1/2” solids for use as a sump or effluent pump
- Carbon, ceramic, BUNA mech. seal
- Quick Disconnect 20’ power cord
- Discharge: 1-1/2” NPT
2EP Submersible Effluent Pump
Features and Benefits
- Cast iron, semi-open, non-clog impeller with pump out vanes for mechanical seal protection
- Cast iron volute type casing for maximum efficiency
- Silicon carbide vs. silicon carbide seal faces
- Stainless steel corrosion resistant shaft. Threaded design. Locknut on three phase models to guard against component damage on accidental reverse rotation
- Handles solids up to 3/4”
Applications
- Homes
- Farms
- Trailer courts
- Motels
- Schools
- Hospitals
- Industry
- Effluent systems
- Submersible Effluent Pump - 1/2 HP...part number 953002
- 2EP0511 HP - 0.5 Phase - 1 Volts - 115 RPM - 3450 Impeller Dia. (in.) - 3.56 Max Amps - 14.5 LRA - 46 KVA Code - M Full Load Motor Eff. - 54 Resistance Start - 7.5 Line-Line - 1 Wt (lbs.) - 60
- Submersible Sewage Pump - 1/2 HP...part number 953004

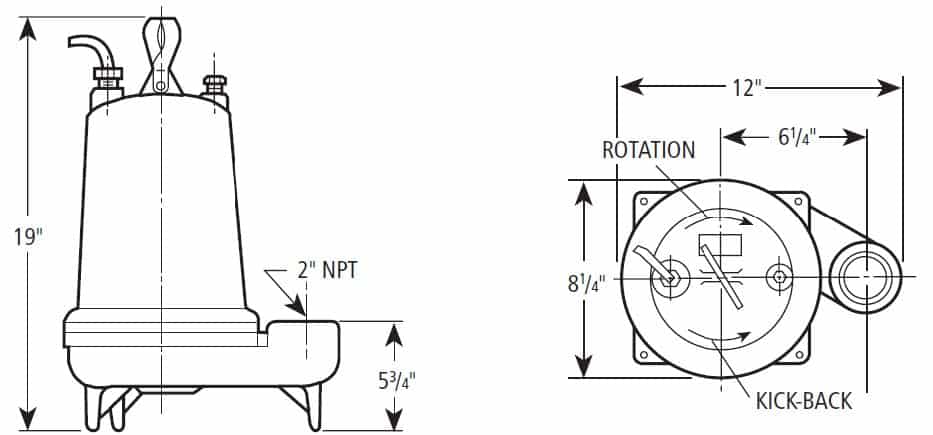

2WS BHF Sewage Pump
Features and Benefits
- Premium cast iron design for strength and durability
- Impeller is a cast iron, enclosed, dynamically balanced, non-clog design with pump out vanes for mechanical seal protection
- Casing is a cast iron flanged volute design with a 2” NPT threaded bolt-on flange for easier assembly, designed for easy installation on A10-20 slide rail
- Handles solids up to 2”
- Shaft is corrosion resistant, 300 series stainless steel, threaded design, locknut on all models guard against component damage on accidental reverse rotation
- Fasteners are 300 series stainless steel
- Capable of running dry without damage to components
- Designed for continuous operation, when fully submerged

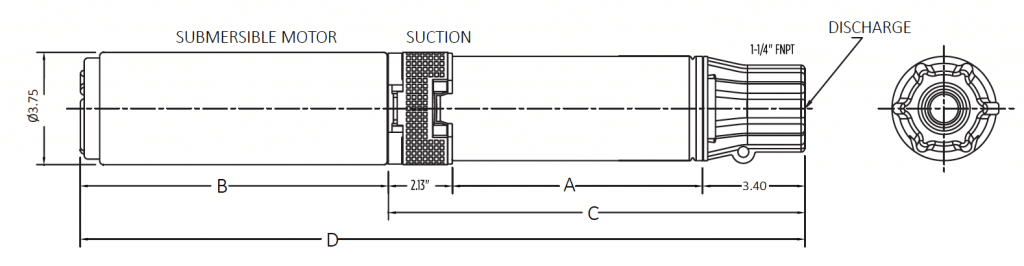

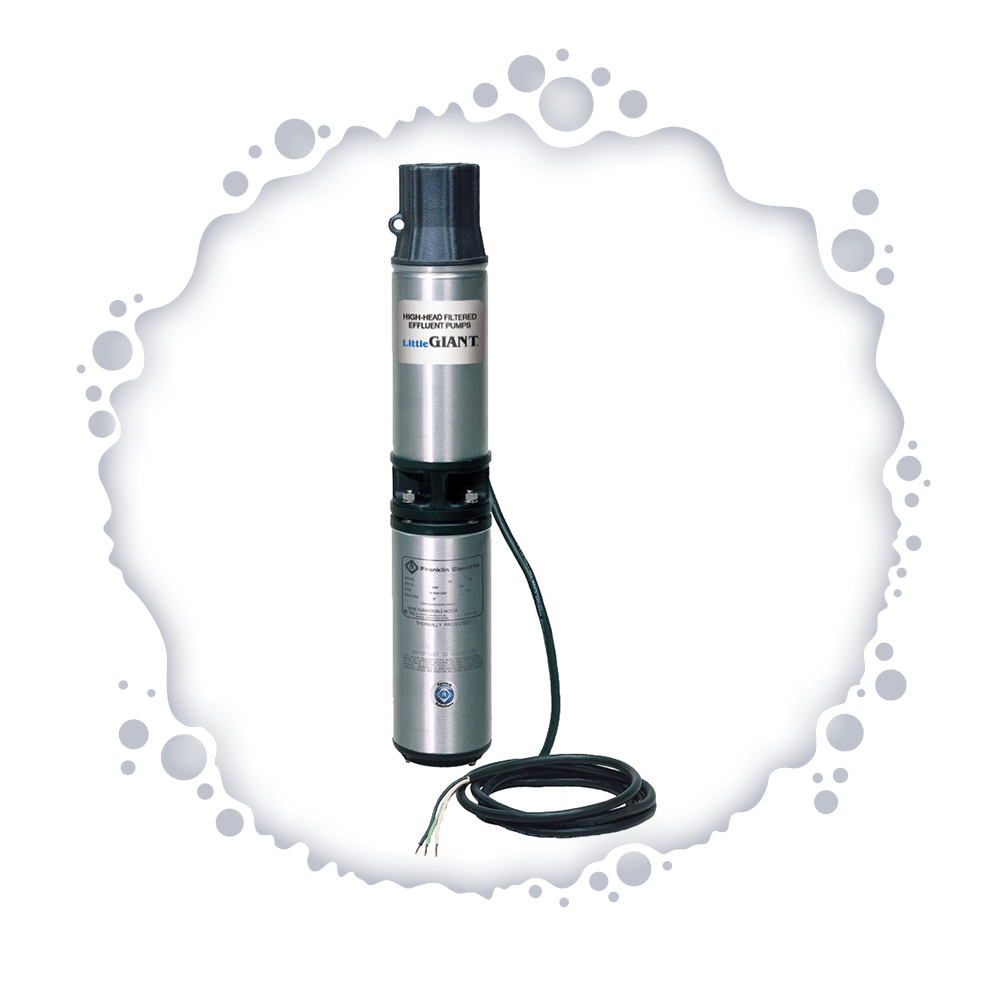

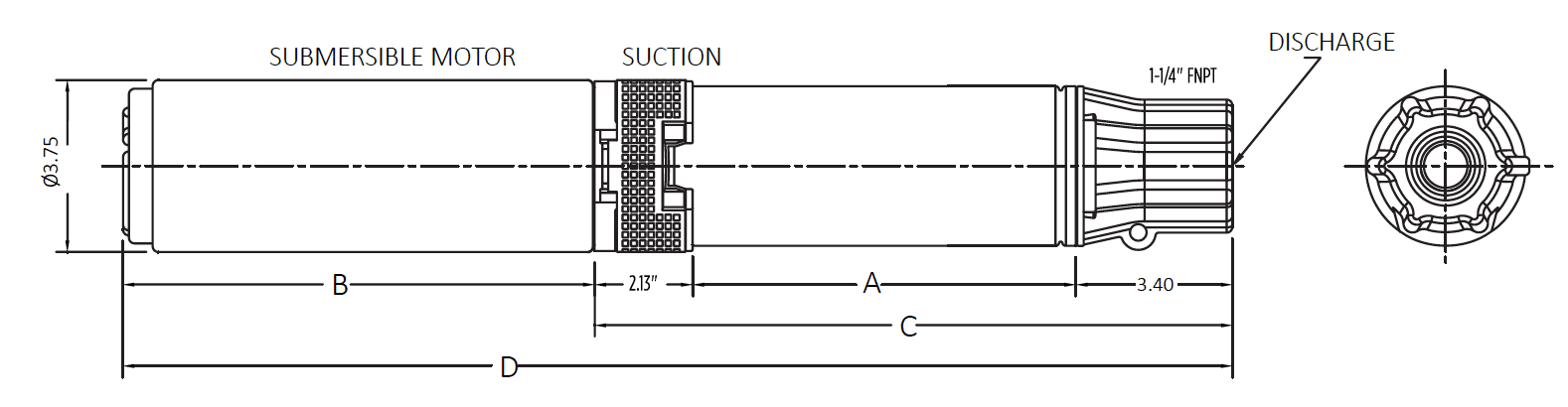

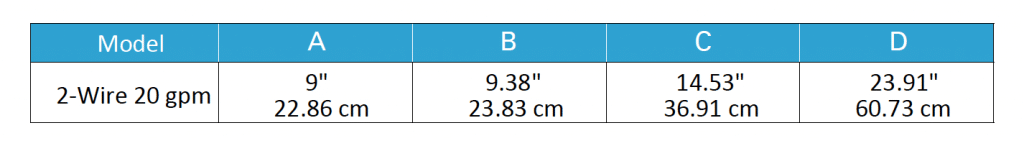

F1 Pumps
Features and Benefits
- Franklin Electric submersible motor.
- Heavy-duty, 300 V, 10 ft (3 m) SJOW motor stripped leads.
- Removable built-in check valve.
- Non-corrosive thermoplastic discharge and motor brackets.
- Proven “PPO” staging allows close tolerances and increased performance.
- High quality top bearing for maximum durability and years of reliable service.
- Hex rubber bearing has extra-large surface for shaft stability and multiple flow channels for keeping particles away from bearing surfaces.
- Stainless steel up thrust washer prevents excessive wear in service applications
- cCSAus listed.
- Utility Pump - 1/2 HP...part number 953003
- Utility Pump - 1 HP...part number 953012
- Utility Pump - 1/2 HP Little Giant WE20G05P4-21...part number 953058
